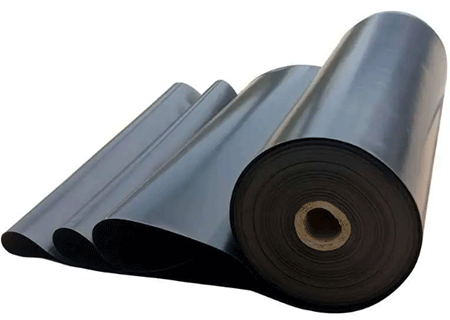

HDPE Geomembrane

HDPE Geomembrane are used in a wide range of liners and containment applications. Our geomembrane are made from premium virgin HDPE resins which is outstanding in long term resistance to chemicals, ultraviolet, ozone, oxidation and environment stress crack.

At Yorn Wire Steel, we take “product quality” seriously. Research & Development Center in our site Industrial Estate allow us to develop our unique formulations that fulfil customer’s requirement. Our HDPE geomembrane is certified to GRI GM-13 standard.

Applications :

– Irrigations and water reservoir
– Aquaculture
– Landfills
– Biogas
– Waste water treatment
– Mining and Dam applications
– Ponds and lakes
– Infrastructure
– Waste water containment
– Concrete tank liner
– Power plant
– Hazardous waste landfill
– Pond decoration
– Dam
– River bank , Water channel
– Metro, Basement, Tunnel

Benefits of HDPE Geomembrane :

– The most super durable and shelf life warranty
– Lowest permeability
– High Ultraviolet resistance
– The most chemically resistant of all the polyethylene
– Hot wedged welders are virtually stronger than the sheet itself
– High performance mechanical strength
– High tear resistance
– Cost effective
– Outstanding stress crack capacity
– Meet or exceeds GRI-GM13 standard (The Geosynthetic Research Institute)

Geo drain is a technical material used for drainage in order to reinforce soil improvement.

Geo drain is including 2 parts: Core+ Filter

• The core is made from polypropylene /polyester, rectangular cross-section, with many effective drainage ditches.
• Filter is made of thin polyester (membrane), which prevents dirt and adds the drainage capacity for the the core.

Drain included 2 types: vertical drain and horizontal drain.

SPECIFICATIONS – ADVANATAGES

ADVANTAGES

• Reasonable price with international quality.
• High quality importing source of raw material.
• Extremely good at abrasion resistance.
• Easy construction Shortening construction time.

SPECIFICATIONS:

• Stabilize soil grounds and minimize disturbance of soil layers.
• High compatibility of core as well as filter with many soil types.
• The drain can be closed down to a depth of over 40m.
• Non-corrosive or degenerate by acids, alkalis or soluble subtances in the soil.
• Save the amount of earthwork Reduce transportation and contruction costs.

PRODUCTION LINE

APPLICATIONS

SOFT GROUND REINFORCEMENT: PVD is used to treat weak soil reinforcement, in a short time can reach 95% long-term stability, creating a start for natural stabilization process at the stage after. The reinforcement process can be accelerated by loading.

BASE STABILITY: Work can apply drain to handle a variety of weak soil, including highways, the path of the bridges, airport runways, railways, ports,…Built on soft ground that has dynamic loading and geotextile fabric.

ENVIROMENTAL TREATMENT: Drain is used to treat weak soil, pasty soil in areas of garbage burial compartment. It is also used to clean up contaminated areas by vacuum technology, absorb groundwater through the contaminated soil layers, carrying pollutants that dissolve in the water to the surface to handling.

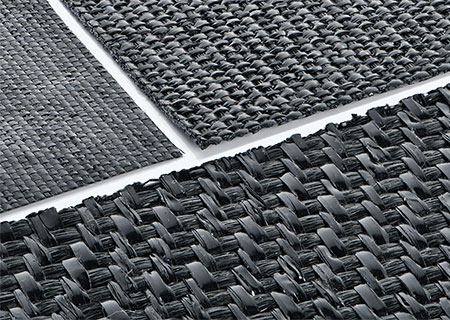

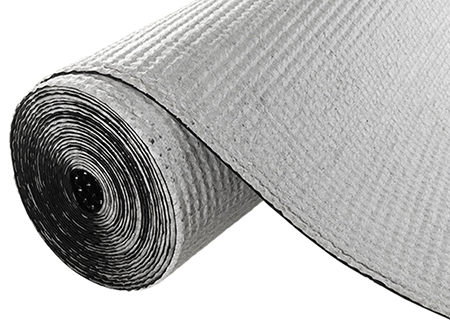

Woven Geotextile is produced by our factory on automatic Korea production line, using 100% polyester materials. It is used for big and important projects such as the wharves, high way, embankments, thanks to high tensile strength up to 500kN and low elongation. It helps to ensure long-term durability and requirements for construction projects.

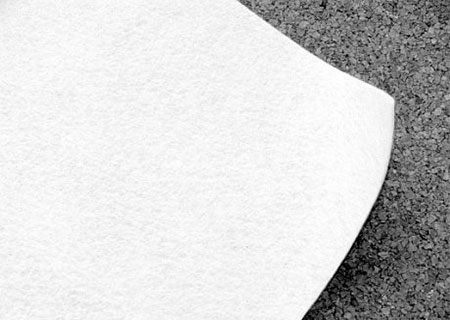

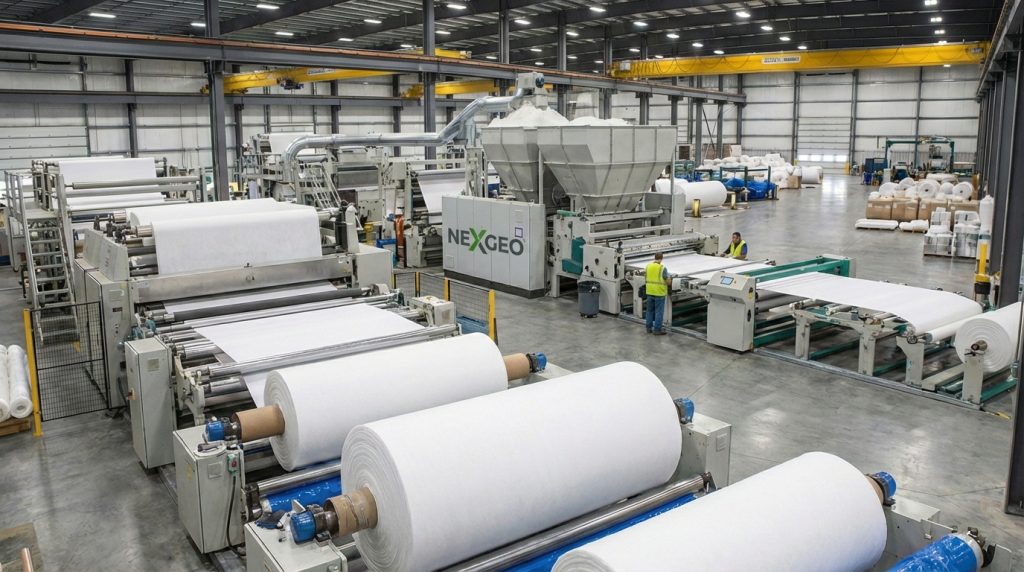

We are the main supplier of Geotextile in Cambodia. APT Non-woven geotextile are manufactured entirely on automatic production lines with Korean technology, using 100% polypropylene with high UV resistant. Geotextile always used with Gabion box.

APT factory can produce from tensile strength 7kN-> 80kN (100g/m2 -> 1200g/m2).

APT Non-woven geotextile are widely used in road and bridge construction projects thanks to its high quality and diversified features suitable to all technical requirements of geotextile in Cambodia.

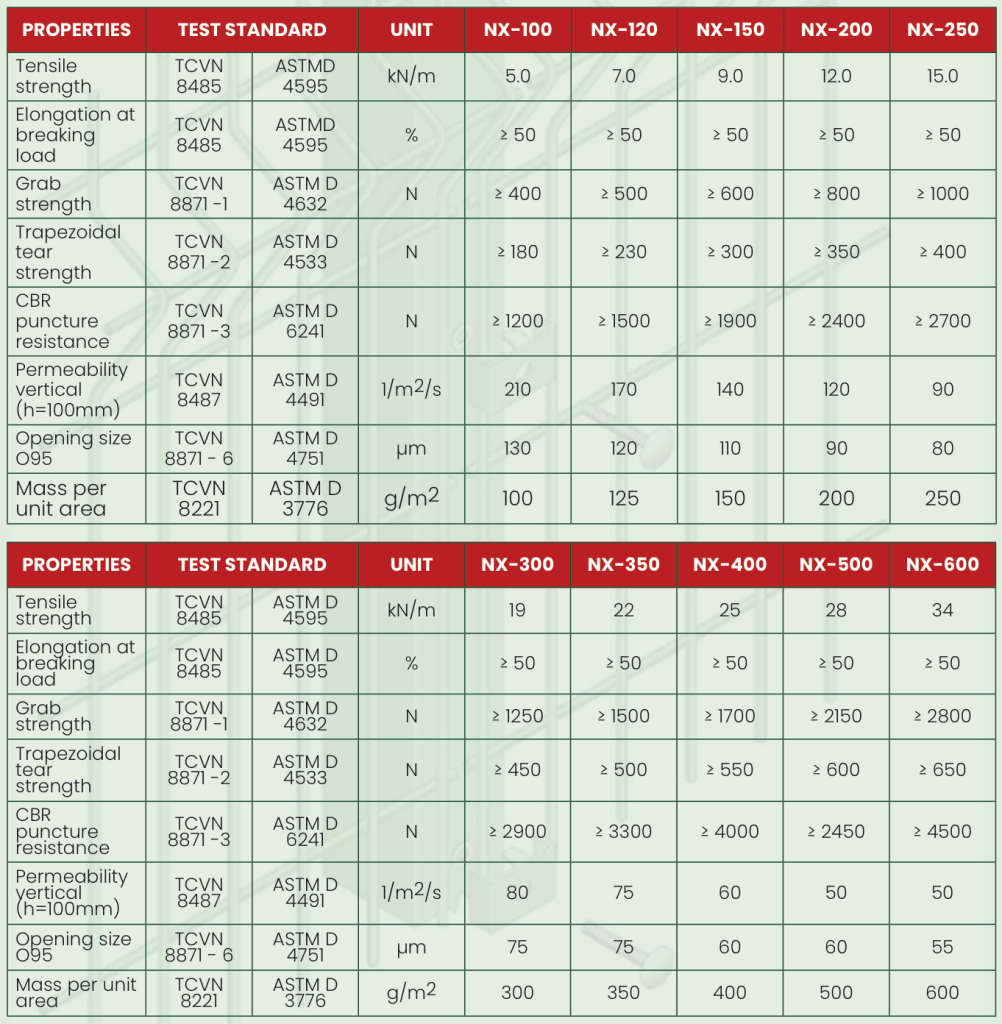

Technical Specification:

Application:

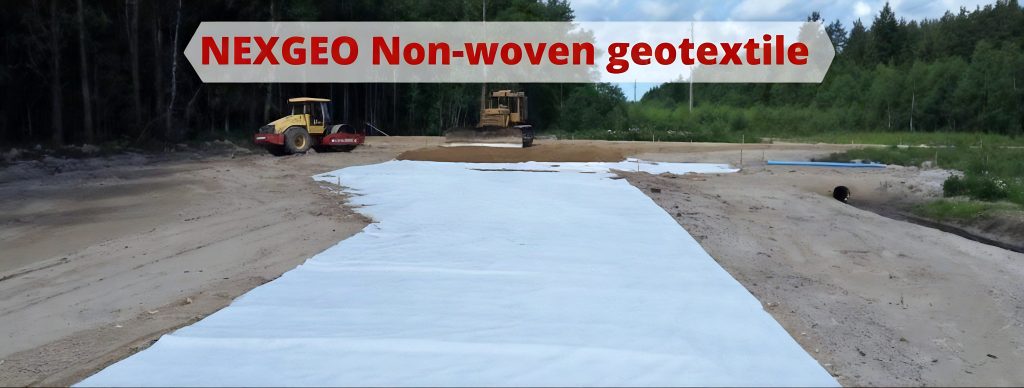

Road base stability: Thanks to the high tensile, non-woven geotextiles are used as a layer between the subgrade and the weak soil to maintain the subgrade thickness and increase the load capacity of the road. It helps to stabilize the subgrade in road construction, railway, yard, container yard, ground leveling ….

Restore and strengthen weak ground: Geotextile is used as a cost-effective and effective way to restore weak cells or areas, such as swamps and mudflats, with high tensile strength and low elongation.

Anti erosion: Used in structures such as dykes, dams, irrigation canals, river and seacoast to reduce hydrodynamic pressure from inside sloping surfaces and eliminate environmental impacts of erosion like temperature, rain, wind, waves.

Filtration and water drainage: using in projects such as stadium, golf course, park, drainage flow in farming…

Protection layer for geomembrance in landsfill, waste ponds,…

For More information Please feel free to contact us or visit our facebook page at www.facebook.com/yornwiresteel.

Concrete reinforcing mesh or Wire Mesh For Concrete is the integral concrete structures component. Yorn Wire Steel is a leading manufacturer of reinforcing mesh in Cambodia, as well as a supplier of concrete reinforcing wire products. We supply various of products as follow: reinforcing mesh, slab mesh, rib mesh, trench mesh, welded mesh, tie wire, steel bar, rebar support, reinforcement spacers and so on.

• Material: carbon steel.
• Surface treatment: Carbon steel.
• Mesh opening shape: square or rectangular.
• Steel rod style: ribbed.
• Diameter: 3 – 12 mm.
• Distance between rods: 100, 200, 300, 400 or 500 mm.
• Mesh sheet width: 1000 – 2400 mm.
• Mesh sheet length: 6000 – 50000 mm.
• Standard reinforcing mesh size: 2.4 × 6 m , 2 × 50 and 2 × 25.

• High strength and good stability.
• Improve bonding to concrete, minimize concrete cracking.
• Flat even surface and firm structure.
• Corrosion and rust resistant.
• Durable and long service life.

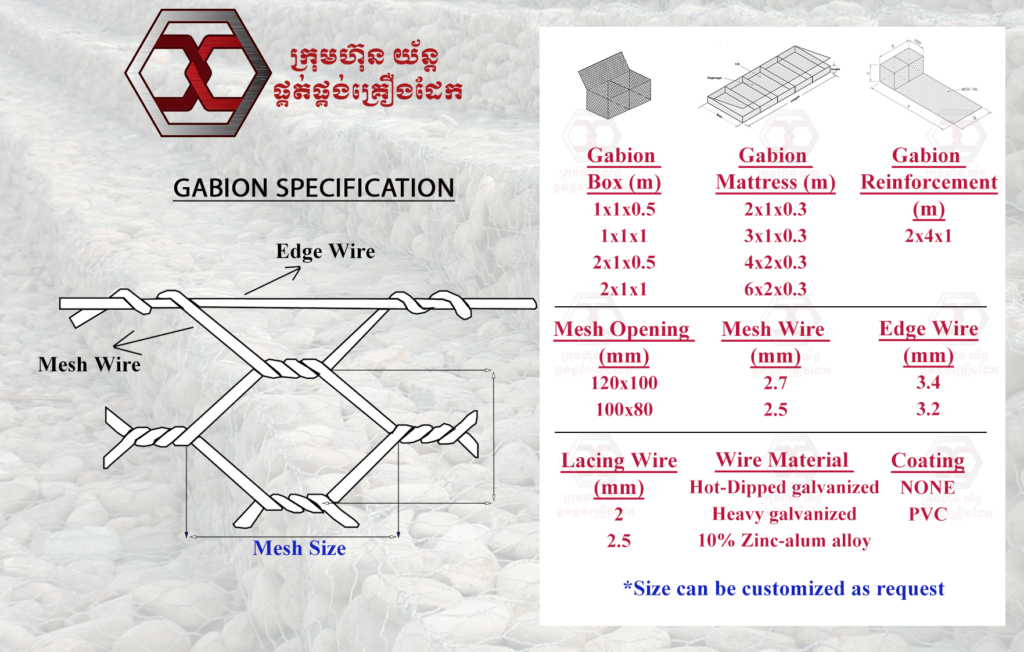

• Supply heavy galvanized gabion in Cambodia, up to 20 years lifetime in critical environment.

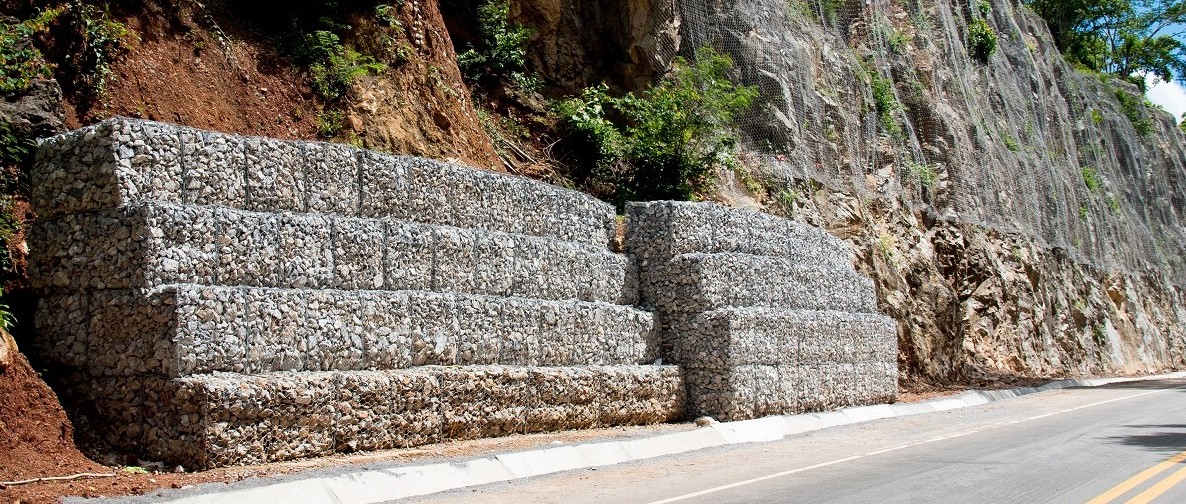

• Why you need Gabion box or mattress?

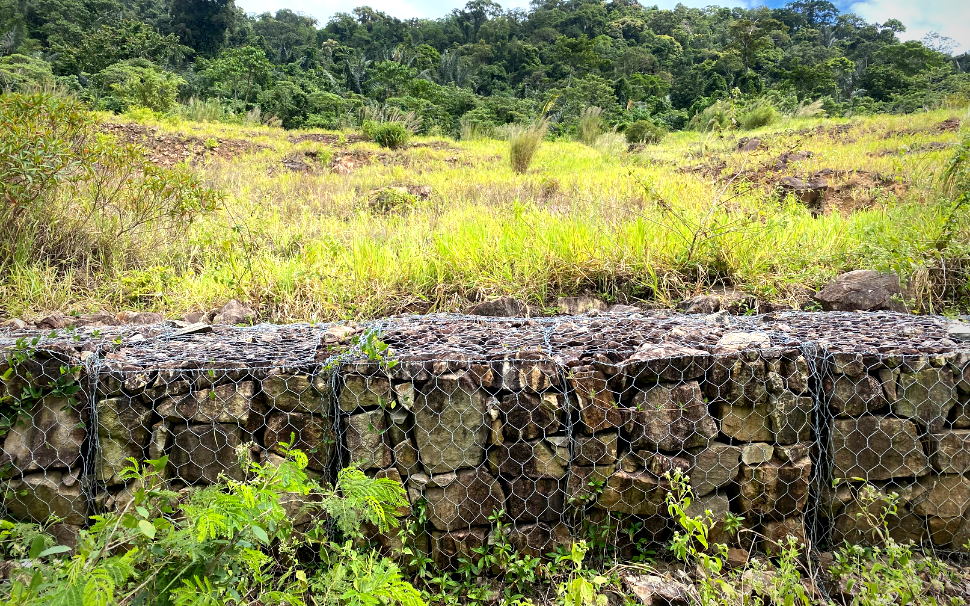

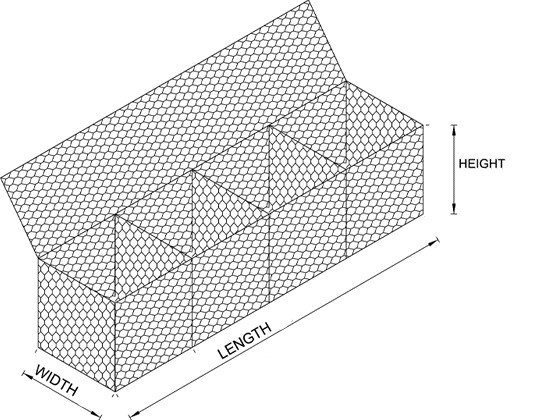

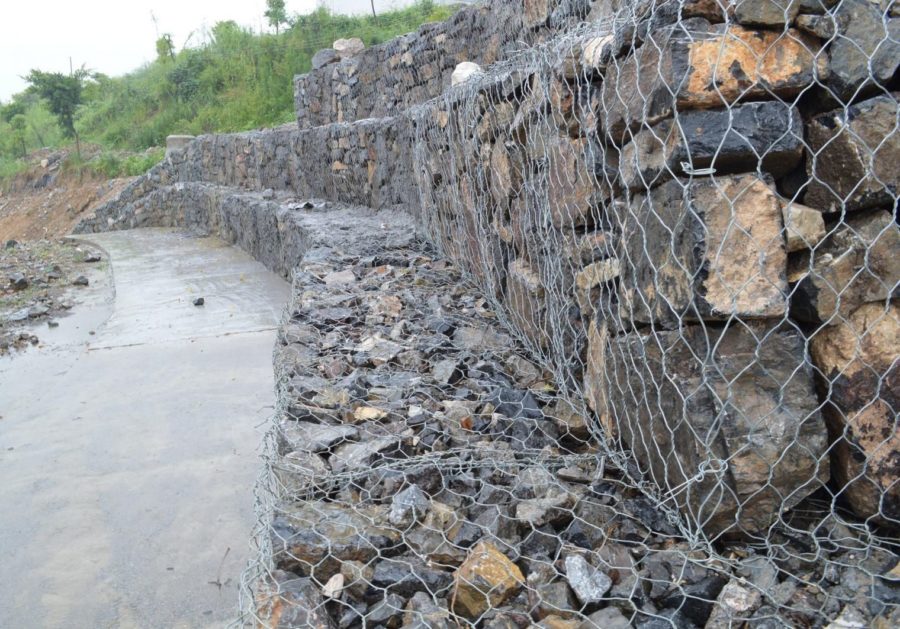

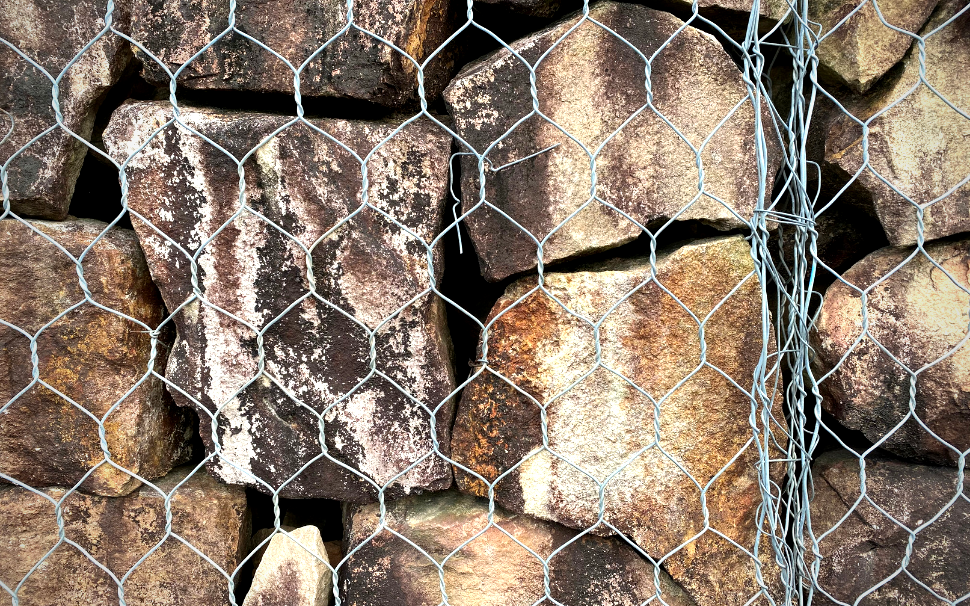

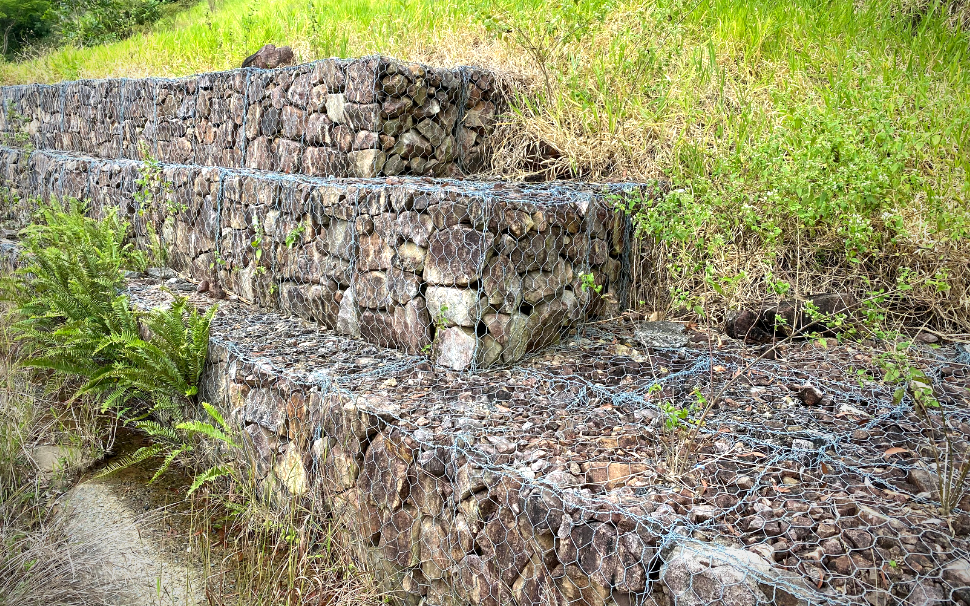

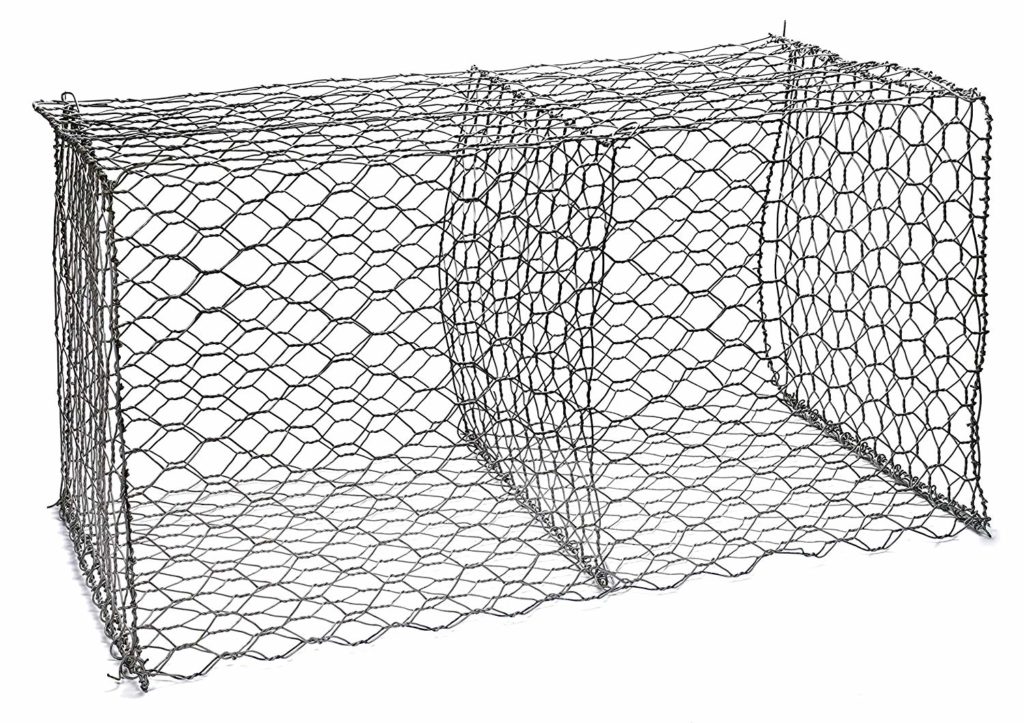

• Gabions are wire mesh boxes, containers or baskets filled with rock to prevent soil erosion and to retain/contain soil particles.
• Gabion and geotextile are normally used together to reduce water velocities and to re-capture river bed sediment in streams.

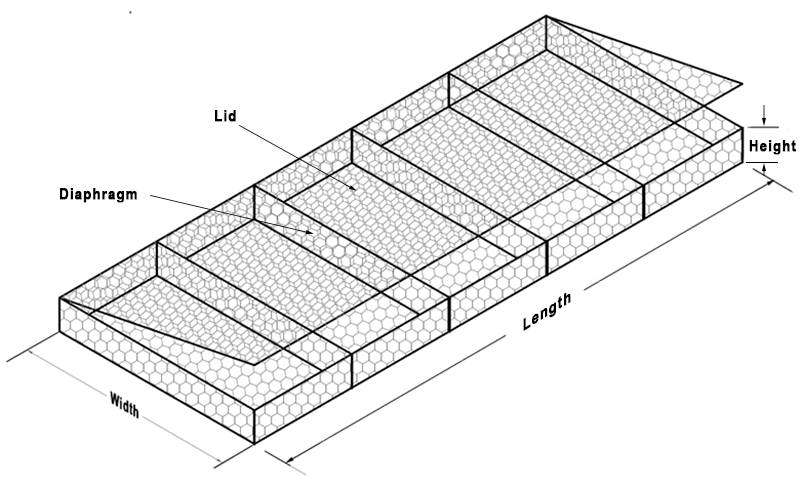

• Flat Gabions, called Gabion Mattresses, are widely used in river courses where soil erosion is a problem over a large flat or sloped area in need of protection against soil loss or scour.
• They are used mostly in the civil engineering industry, especially in the construction of roadway drainage structures.
• We now offer Gabions and River Mattresses using a new wire coating, which is a new improved form of Galvanization, including 95% Zinc coating alloy with 5% Aluminium, it has vastly improved corrosion protection properties; providing 2-3 times more corrosion protection than normal Galvanizing !
• Our Gabions use a Class A Galvanising – or together with an additional 0.5mm thickness PVC coating – for hexagonal type woven wire mesh gabion materials.

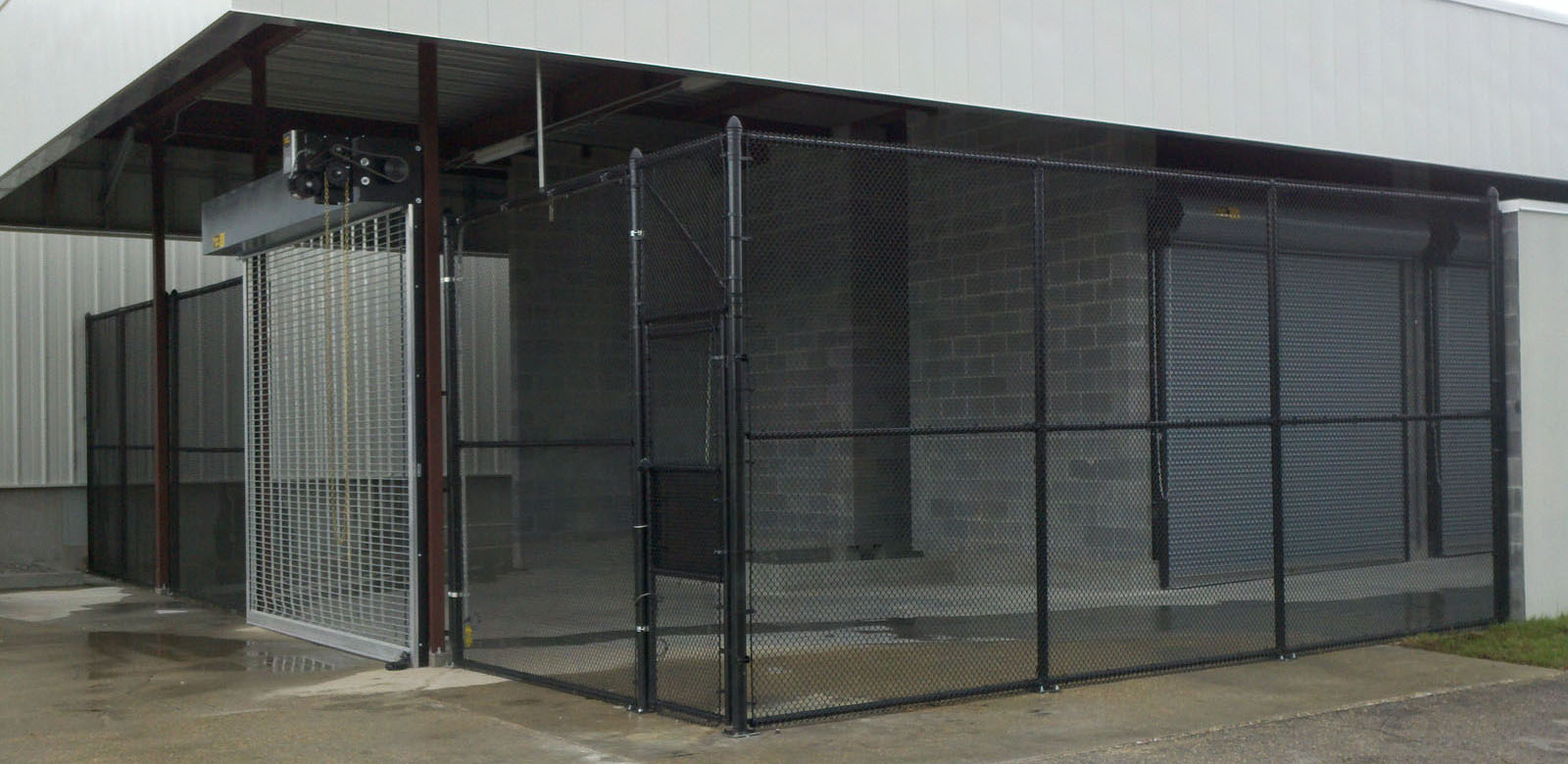

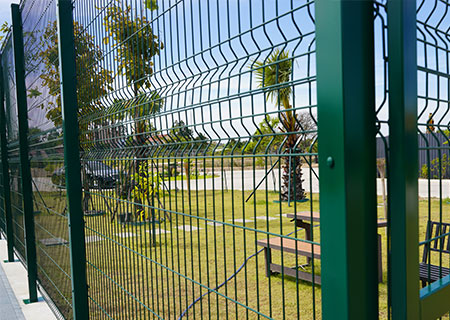

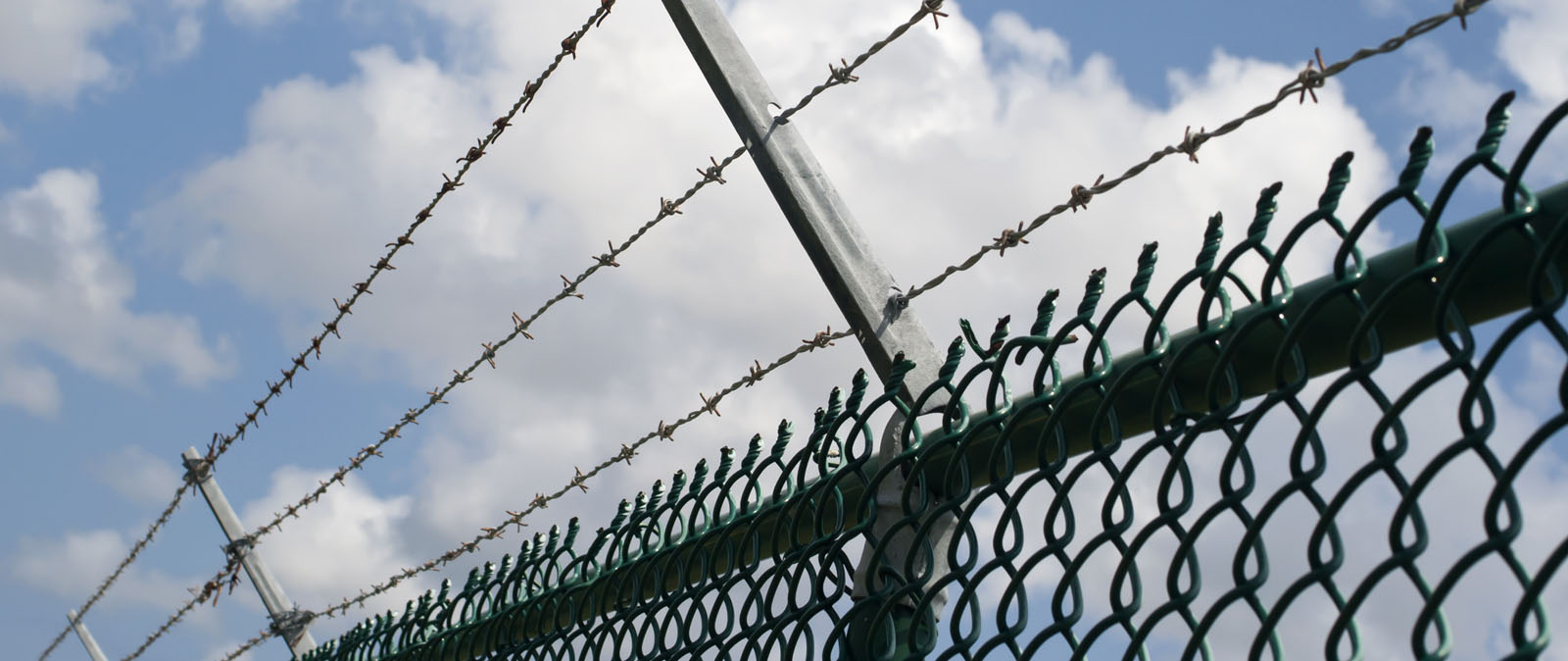

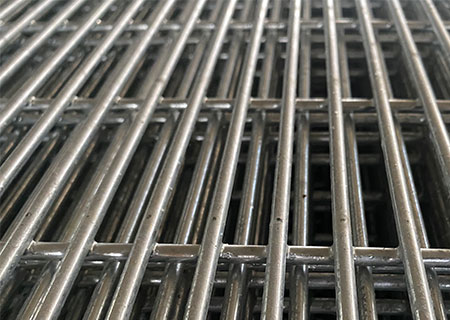

Anti-Climb Security Fence, also known as prison mesh, is a kind of superb security fencing because of its anti-climbing and breaking structure.

Thick diameter and extremely small mesh opening protect security fence from cutting, climbing and breaking. Optional razor wires or wall spikes can further enhance the security.

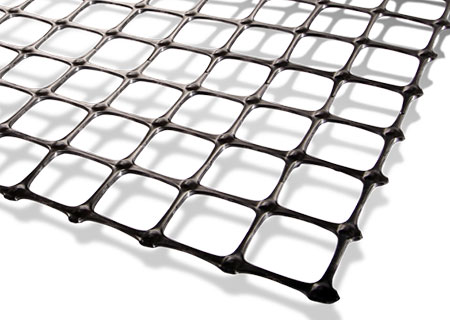

GEOGRID IS A POLIMER PRODUCT, it is made of polymer materials such as Polypropylene (PP), high density polyethylene( HDPE) and Polyester (PET) The geogrid with high tensile strength, low deformation could be used in the reinforcement of soil for walls, steep slopes, reinforced soft soil requires high life over 100 years.
Please contact us for more details and catalog.

FUNCTION

• Calculating tightly with surrounding materials, creating a solid foundation, especially against the slip of embankment used as dams and earth retaining walls.
• Versatility: almost suitable for all types of soil and rock.
• Save the amount of earthwork, take advantage of on-site materials.
• Fast construction time with low cost.
• Durable geogrids with physical and chemical impacts of the environment, corrosion often seen in the area to handle soft ground (mined areas, landfills, marshlands, ports…)

ADVANTAGES

• APT geogrids with a variety of product: PP grid, PET grid, glassgrid, rectangular grid, triangular grid.

Glassgrid is a new technology developed specifically for improvement and upgrading highway and airport projects. The use of glassgrid for upgrading and renovating road and airport projects could extend the life of asphalt layer up to 2 times more than not using it.

APPLICATIONS

• RETAINING WALLS: Geogrids is spread horizontally, associated with the plates or blocks facing outside against the shear of the potential block sliding and could build the wall as high as 17 meters with slopes to 90 degrees.
• SLOPE ROOF: The geogrid is spread into horizontal layers in the slope to increase stability and slipping control. The surface of the slope roof can be anchored with the geotextile itself or shielded by earth sacks or artificial vegetation to prevent surface erosion. The slope by this method can reach a height of 50m.
• BRIDGE LEADING PATH: Like the retaining wall, the geogrid is spread into each horizontal layer, anchored between the roof panels at the two roofs leading the bridge, both increasing the load capacity and saving the space on both sides of the path.
• PILE BONDING: After closing the foundation piles, the net is spread on the piles, creating a load-bearing support from the above buildings to all piles effectively, while also saving the number of piles.
• CREATING A NET TO SUPPORT A LOT OF EMPTY CAVITIES: The grid is used to cover a lot of empty cavities, a part of limestone , the foundation has a lot of lumpy materials … limiting hollow holes, protecting the lining layer as membrane waterproofing (cell burying garbage, reservoirs on rocky mountains, mines, etc.).

FRICTION ON SLOPING ROOFS: In order to increase the friction of the embankment material on the sloping roof, there is a spread of smooth waterproofing membranes or other geotechnical materials.
